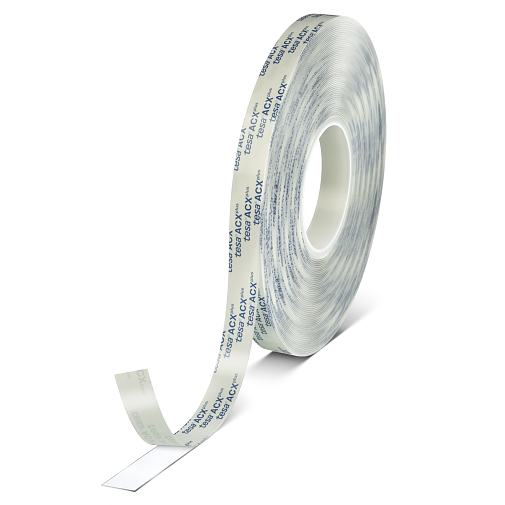

tesa® ACXplus Acrylic 7054 Bonding Tape – Transparent – 12mm x 25m x 0.5mm Roll

£20.78

tesa® ACXplus 7054 is a transparent acrylic core tape. It consists of a high-performance acrylic system and is primarily characterised by its Bonding Power, Stress Dissipation and its Temperature and Weather Resistance.

Due to the high transparency it is especially suitable for constructive bonding of transparent and translucent materials such as glass or acrylic.

The visco-elastic, solid acrylic core compensates different thermal elongation of bonded parts.

18 rolls per carton

OUR PRICE – £20.78 PER ROLL



tesa® ACXplus7054 High Transparency 500 µm

Product description

tesa® ACXplus Acrylic Foam Tape 0.5mm Thick

tesa® ACXplus 7054 is a transparent acrylic core tape. It consists of a high-performance acrylic system and is primarily characterised by its Bonding Power, Stress Dissipation and its Temperature and Weather Resistance.

Due to the high transparency it is especially suitable for constructive bonding of transparent and translucent materials such as glass or acrylic.

The visco-elastic, solid acrylic core compensates different thermal elongation of bonded parts.



Main applications

Bonding of transparent and translucent materials in the following Industries:

  • Sign Manufacturing
  • Deco Glass Panels
  • Partition Walls

Technical properties

Backing material      – solid acrylic
Colour                      – transparent
Toral thickness         – 500 µm
Type of adhesive      – pure acrylic
Elongation at break  – 1000 %

Adhesion properties

Adhesion to Aluminium (after 3 days)    – 19 N/cm

Adhesion to Aluminium (initial)               – 9 N/cm

Adhesion to Glass (after 3 days)            – 17 N/cm

Adhesion to Glass (initial)                       – 11 N/cm

Adhesion to PMMA (after 3 days)           – 12 N/cm

Adhesion to PMMA (initial)                      – 9 N/cm

Adhesion to Steel (after 3 days)              – 19 N/cm

Adhesion to Steel (initial)                         – 11 N/cm



Rating properties

Temperature resistance short term – 200 °C

Temperature resistance long term  – 100 °C

Tack •••

Ageing resistance (UV) ••••

Humidity resistance ••••

Resistance to chemicals ••••

Softener resistance  ••

Static shear resistance at 23°C ••••

Static shear resistance at 70°C •••

T-block •••

Evaluation across relevant tesa® assortment: •••• Very good ••• Good •• Medium  Low

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore we can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
